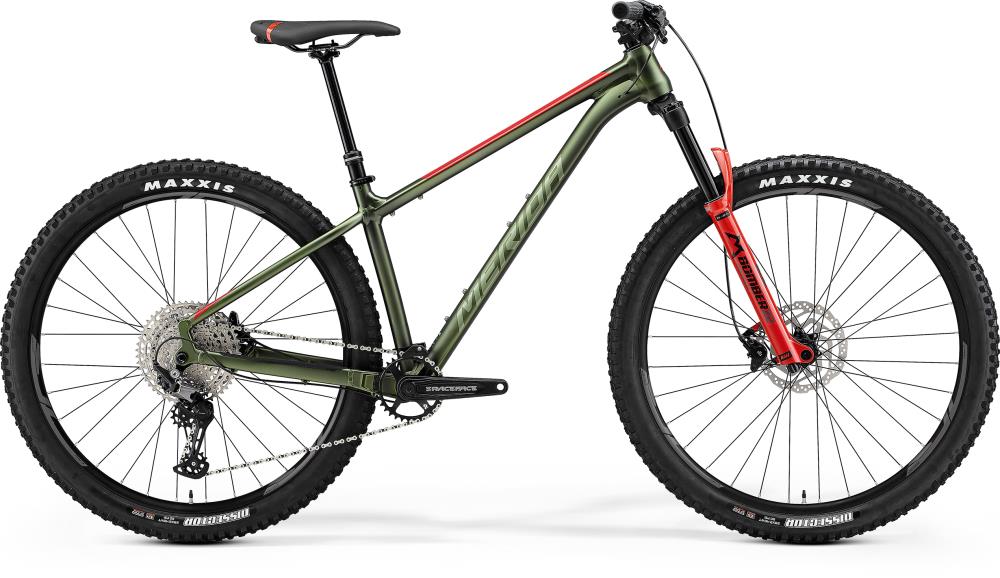

Merida Big Trail 600

ITEM CODE : BT600L

be the first to review this

The big trail 600 is a mountain bike with modern trail geometry. When compared to the 400 and 500, the big trail 600 has a wider range of gears to choose from, with 12 gears in total.

Size

S M L XL XXL

Colour

Green - Red

✖ OUT OF STOCK

£1,200.00

Description

Call us on 01924 496873 for details of our unrivalled after-sales service.

Key features:

Modern trail bike geometry with long reach, slack head angle and steep seat angle
140mm Marzocchi Z2 fork
1 x 12 Shimano Deore drivetrain
Boost Axle standard
Extremely low standover height paired with long travel dropper posts
Multiple fixing points for bottles and other equipment, internal cable routing
29er aluminium hardcore hardtail

Specification

Frame	TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max. tyre size 29" x 2.5
Fork	Marzocchi Z2; Air; 140mm travel; Tapered; 44mm fork offset. Max. tyre size: 29" x 2.6
Gears	12
Shifters	Shimano Deore SL-M6100 12 speed with Shimano SL-MT500-IL lever
Rear Derailleur	Shimano Deore M6100 Shadow+
Bottom Bracket	Race Face BSA 68/73 – 24mm
Chain	KMC X12
Chainset	Race Face Ride; 32 tooth chainset. Crank length: 170mm - S, 175mm - M up. Mr. Control CH-CM1 chain guide
Cassette	Shimano Deore M6100; 10-51 teeth; 12 speed
Brake Lever	Shimano M4100
Front Brake	Shimano M4100; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor
Rear Brake	Shimano M4100; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor
Grip	Merida Comp EC
Handlebar	Merida Expert TR; aluminium; 780mm wide; 20mm rise
STEM	Merida Expert TR; aluminium; 35mm diameter; 0 degree rise - Stem length: 50mm (all sizes)
Head set	Merida M2331
Saddle	Merida Comp SL; V-mount; including Merida minitool
SeatPost	Merida Comp TR; 30.9mm diameter; in-line; Drop: 125mm (S), 150mm (M/L), 175mm (XL/XXL)
Wheel size	29
Rims	Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes	Black stainless
Front Hub	Shimano MT400-B; 110x15mm; 32 spokes; Center lock
Rear Hub	Shimano MT410-B; 148x12mm; 32 spokes; Center lock; including removable lever with 4/6mm Allen key
Front tyre	Maxxis Dissector; 29" x 2.4"; Kevlar bead; folding; TR EXO Dual
Rear tyre	Maxxis Dissector; 29" x 2.4"; Kevlar bead; folding; TR EXO Dual
Colour	Green and Red
Season	2023
