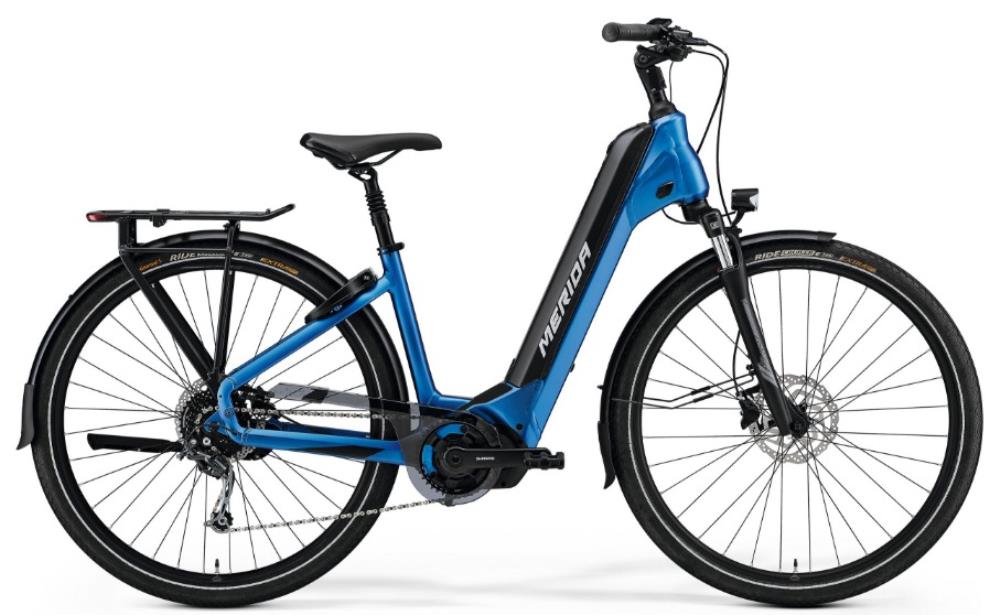

Merida eSPRESSO CITY 400EQ Silk Blue

ITEM CODE : MERESPCIT4BLUXS
be the first to review this

The eSpresso City is a high quality electric bike designed for you to travel carefree.

XS S M L
✔ IN STOCK
WAS £3,000.00
£2,500.00
Description

Call us on 01924 496873 for finance options and details of our unrivalled after-sales service.

Features:

  • EXCELLENT FRAME STIFFNESS THROUGH ENERGY CRADLE - Merida did not add cutouts to the downtube, this protects their stepthrough bikes from instability. An aluminium battery cover, tapered head tube, large tube diameters, and the forged motor bracket all lead to a stiff and stable bike.
  • HUB OR DERAILLEUR GEARS- eSPRESSO CITY hub gear frames have slider droputs 'for smooth and easy chain tensioning' and the dropouts (hub gear and derailleur drivetrain) have carrier mounts.
  • MASSLOAD CARRIER - the eSPRESSO CITY has a maximum load of 27kg!
  • OPTIMISED CENTRE OF GRAVITY - 'A centrally positioned low centre of gravity, which has been achieved through the positioning of the battery in the lower position of the downtube as well as the location of the Shimano motors, enables to deliver fantastic riding characteristics in any situation which are extremely important in particular in wave low step through frames which have the tendency to chatter and jitter when power is applied'
  • INTERNAL CABLE ROUTING - Internal routing ensures cables are protected from extraneous materials and is clatter free!
  • LOW STEP-THROUGH - One of the lowest step through heights you can find, thanks to the forged motor bracket and Shimano mid-mounted motor
  • SMART ENTRY - 'Cables, housings and brake hoses are clamped under tension to prevent rattling when the trail gets rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc'
Specification
Frame eSPRESSO CITY LITE II - Material: aluminium 700x50C (with fender) max. wheelsize 135x9mm axle standard internal max. 630 Wh
Frame size XS, S, M, L, XL
Colour Silk blue
Fork Suntor NEX E25 - Coil 63mm suspension travel 700x52C max wheelsize
Brakes Shimano MT-200 - 2 piston
Rotors Shimano RT10 / Shimano RTEM300 - 180mm
Headset MERIDA CAP w/ wire gateway
Handlebar MERIDA EXPERT TK - material: aluminium 640mm width 35mm rise
Handlebar STEM MERIDA EXPERT TK - material: aluminium 31.8mm diameter adjustable 65 mm-XS/S/M, 90 mm-L/XL
Grip MERIDA EXPERT TK
Derailleur Shimano Deore M592 SGS
Shifters Shimano Alivio M3100
SeatPost MERIDA EXPERT TK - 30.9mm diameter 15mm setback 40mm seatpost suspension travel
Seat Clamp MERIDA EXPERT
Saddle MERIDA EXPERT TK -V-mount
Pedal VP VPE-891
Chain KMC e9S
Chainguard Sunnywheel SW-CG-173A
Chainwheel Shimano CRE61 - 38 teeth Shimano FC-E6100
Crank Shimano FC-E6100 170mm
Freewheel Shimano HG200 11-36 teeth 9 speed
Hubs Shimano TX505; 100x9mm; 32 spokes; Center lock;135x9mm; width rear hub; 36 spoke holes; Centerlock
Rim Merida Comp TK 20mm inner width material: aluminium
Tyre front Continental Ride Cruiser- 622-50 wire reflecting line
Tyre Rear Continental Ride Cruiser- 622-50 wire reflecting line
Spokes Black stainless
Fender Sunnywheel SW-FA311-60E1 (MSB)
Kickstand Atranvelo 1219-PC-7
Frame lock Abus 4650 XL
Drive unit Shimano E6100 - 60Nm
Battery Shimano E8035-L - 504Wh
Battery lock Abus Key
Display Shimano SC-E5000
Weight 28.34kg -weighed with 700C wheels and at frame size S, without pedals
Max weight 150kg
Manual Merida
